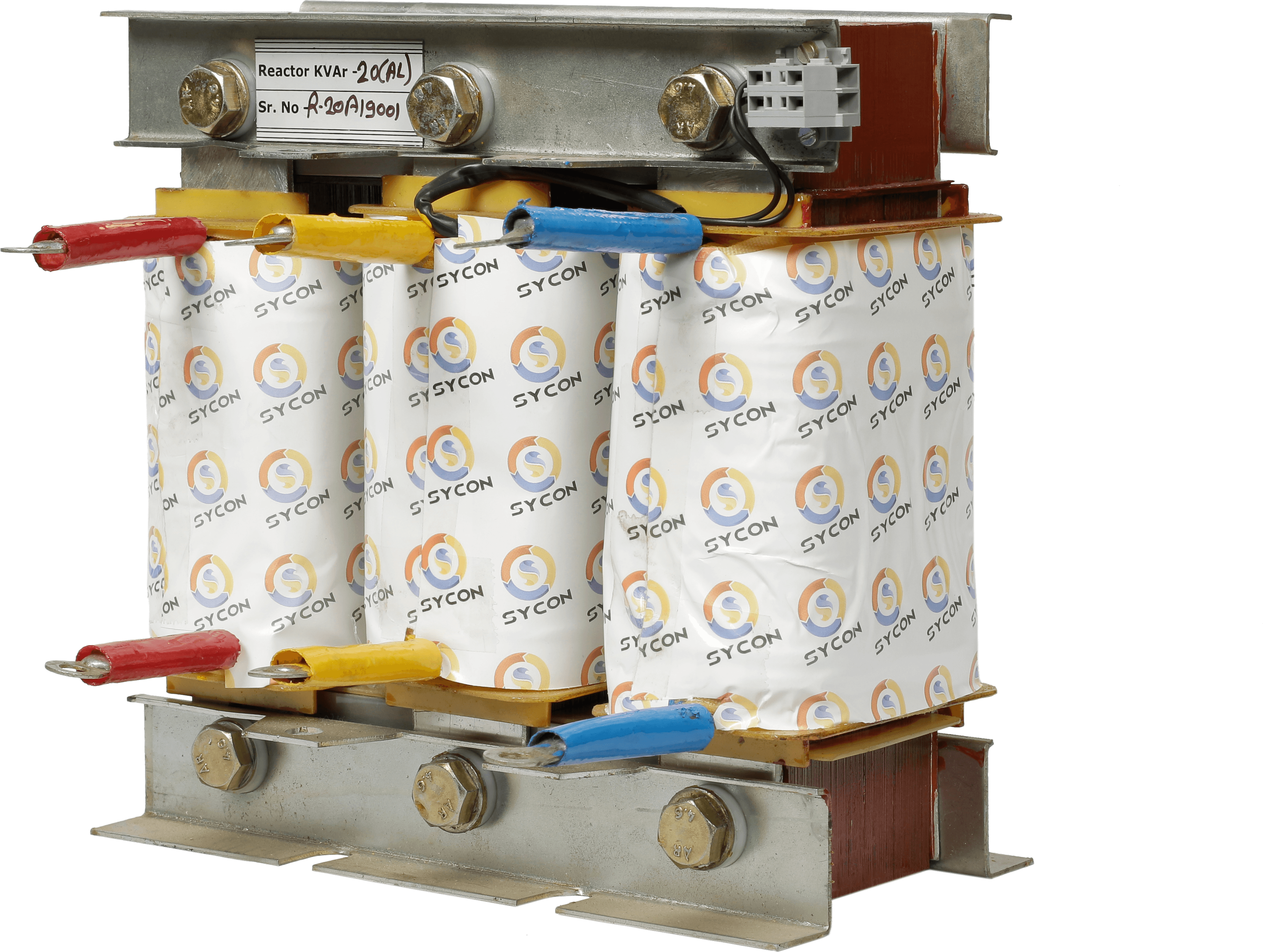

SYCON Series Harmonic Reactors
SYCON Series Harmonic Reactors for detuned capacitor bank applications and harmonic protection in industrial power systems.
Series Harmonic Reactors for Power Quality
SYCON Series Harmonic Reactors are designed for use with power factor correction capacitor banks to provide detuning and help protect capacitor systems from harmonic currents. The reactors are connected in series with capacitors and are designed for low losses, high linearity, high overloading capability and reliable operation in industrial power quality applications.
SYCON Series Harmonic Reactor 1 kVAR 7%
7% detuned Series Harmonic Reactor for 1 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 2 kVAR 7%
7% detuned Series Harmonic Reactor for 2 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 3 kVAR 7%
7% detuned Series Harmonic Reactor for 3 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 5 kVAR 7%
7% detuned Series Harmonic Reactor for 5 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 7.5 kVAR 7%
7% detuned Series Harmonic Reactor for 7.5 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 10 kVAR 7%
7% detuned Series Harmonic Reactor for 10 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 15 kVAR 7%
7% detuned Series Harmonic Reactor for 15 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 20 kVAR 7%
7% detuned Series Harmonic Reactor for 20 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 25 kVAR 7%
7% detuned Series Harmonic Reactor for 25 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 50 kVAR 7%
7% detuned Series Harmonic Reactor for 50 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 75 kVAR 7%
7% detuned Series Harmonic Reactor for 75 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
SYCON Series Harmonic Reactor 100 kVAR 7%
7% detuned Series Harmonic Reactor for 100 kVAR capacitor bank applications in 400 V, 50 Hz power systems.
Applications
Typical applications for the SYCON Series Harmonic Reactors.
Automatic power factor correction panels
Capacitor bank systems
Detuned capacitor banks
Industrial power quality systems
Harmonic protection of capacitor installations
Not Sure Which SYCON Series Harmonic Reactors
Fits Your Application?
Share your electrical application or requirement with our engineering team. We can help you identify the appropriate product model for your system.
